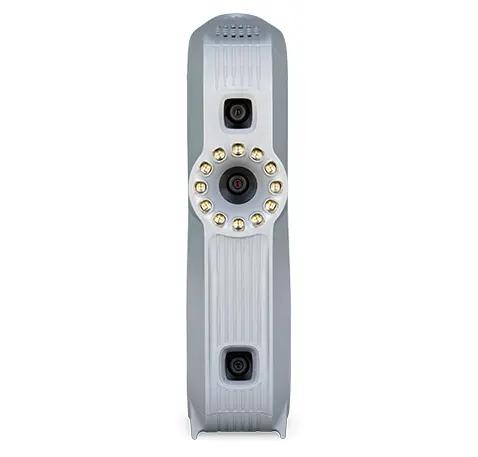

Artec Eva 3D Scanner has high powered geometry and texture tracking.
Very fast capturing speed (16 Frames/Sec) and easy to use, high resolution.
No warm up time required
Ability to scan directly to Mesh.
Automated processing with .STL or .OBJ output files.

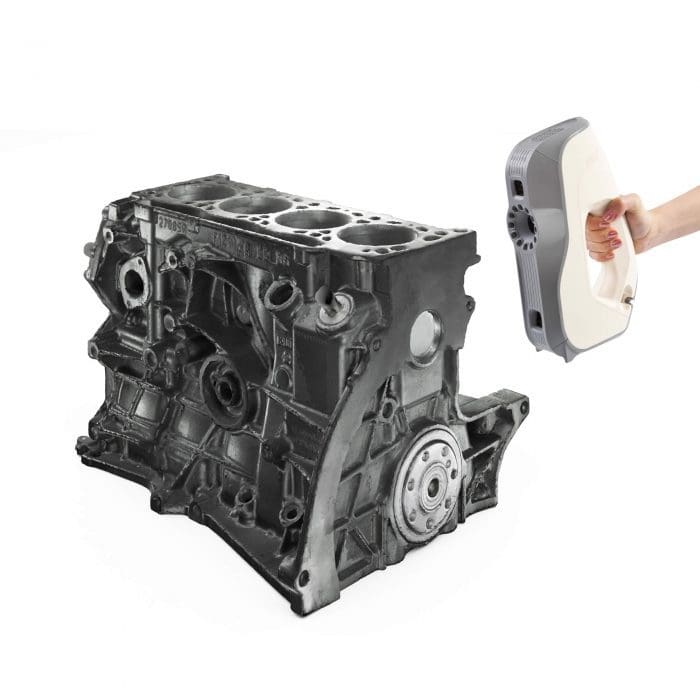

Perfect for medium to large parts (Backpack to a Vehicle).
Artec Eva 3D Scanner – Specifications Table
Working distance
0.4 – 1 m
Linear field of view, H xW @ closest range
214 × 148 mm
Linear field of view, H XW @ furthest range
536 × 371 mm
Angular field of view, H x W
30 × 21°
3D resolution, up to
0.1 mm
3D point accuracy, up to
0.05 mm
3D accuracy over distance, up to
0.03% over 100 cm
Warm up period for achieving maximum accuracy
Space Spider: 3 min Spider: 30 min
Scanning technology
structured light
Video frame rate, up to
16 fps
Texture resolution
1.3 mp
Colors
24 bpp
Structured Light source
Yesflash bulb (no laser)
Data acquisition speed, up to
2 mln points / sec.
Multi core processing
Yes
Exposure time
0.0002 sec.
Output formats
3D formats
OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB
Formats for measurements
CSV, DXF, XML
Common specifications
Weight
0.85 kg (1.9 lb)
Dimensions, HxDxW
262 × 158 × 63 mm
Power consumption
12V, 48W
Interface
1 × USB 2.0, USB 3.0 compatible
Processing capacity
40 mln triangles / 1 GB RAM
Requirements
Processor
Intel I5 or I7
Memory
12 GB
Video cards
NVIDIA, AMD, or Intel
OS
Windows 7, 8, 10 – x64
Free disk space
300 MB for installation
Artec Eva 3D Scanner Special Featuress
Fast capturing speed: 16 fps Capturing and simultaneously processing up to an impressive two million points per second, Artec Eva 3D Scanner also provides high accuracy — up to 0.1mm (0.004”). Texture resolution up to 32K depending on graphics card.
High 3D Point Accuracy: 0.01mm Scan in brilliant color and high 3D resolution
No targets & calibration. Just point and shoot No need for preparation, just plug in the scanner and point it around the object as you would with a video camera. Simple
Powerful hybrid geometry and texture tracking and capture Artec Spider is able to read both the geometry and color of the object being 3D scanned. As a result it collects two sets of data by which to track and to perform post-processing.
Easier, smoother 3D scanning
Faster post-processing
Achieve best possible results with geometry and texture data combined
Scan even large, featureless objects using color and geometry differentiation

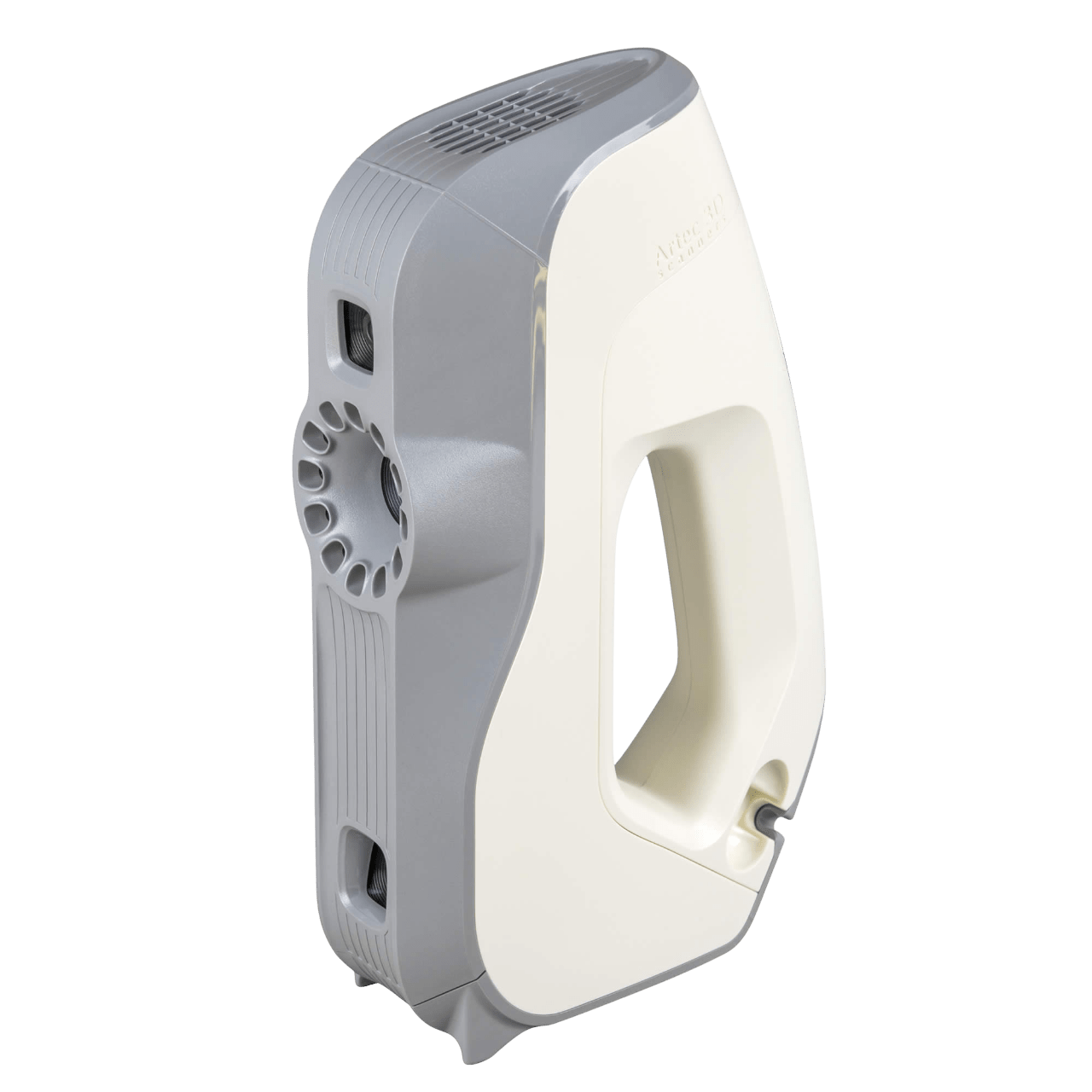

Artec Eva
A smart professional 3D scanner for a next-generation user experience
Battery pack
The Artec battery pack gives up to 6 hours of continuous scanning time. This means you can really take an Artec scanner anywhere and capture objects right in the field. Compatible with all Artec handheld scanners.
Specifications
Battery dimensions
185*125*15mm
Type of battery
Lithium-polymer
Output voltage
12V
Capacity
16000mAh/59.2W
Provides up to
1 hour of continuous scanning
Charging provided by kit power adapter
100-230V to 19V

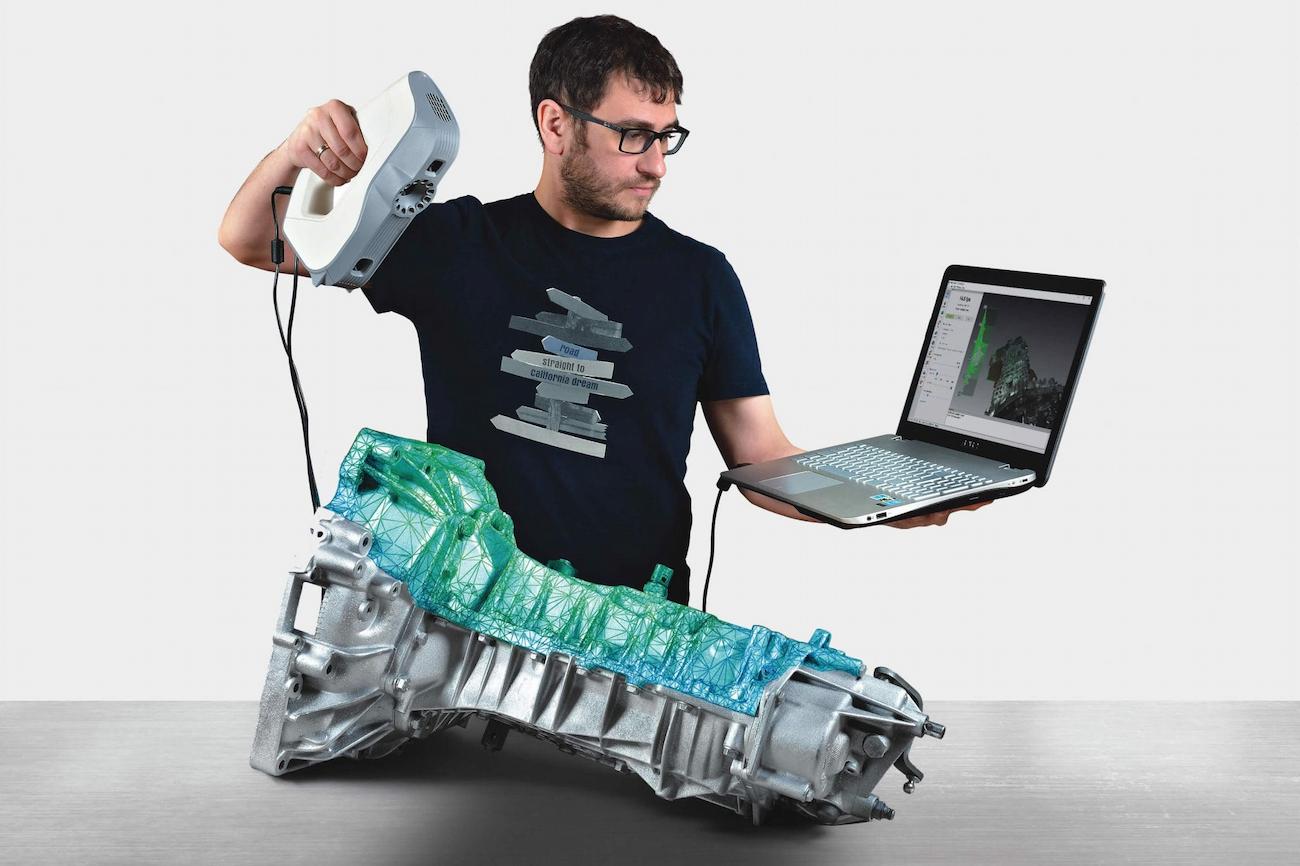

Artec Studio Proclaimed 3D Scanning Processing Software
Smart 3D data processing has never been easier.Create professional 3D models with the most comprehensive software for 3D scanning and data processing on the market today. Enjoy a wide range of cutting edge features, including the new Autopilot mode which expertly guides you through the whole post-processing pipeline, automatically choosing the best algorithms for your data, so you can watch your high precision model being put together before your eyes. You can also take full control of your results with the wide variety of advanced features available.
